The SL180LED minor surgical light has been designed to provide exceptional performance whilst keeping running costs to a minimum.
SL180 Overview
- Lowest total cost of ownership minor surgical light
- Costs up to 75% less to run than halogen equivalent
- 4,300k colour temperature
- 50,000 lux at 0.75m (Normal working distance)
- 35,000 lux at 1m
- Variable intensity
- Various mounting options available
- Easy to use controls
- Smooth, fully enclosed head
- Bioprotect anti-microbial surfaces
The SL180LED minor surgical light has been designed to provide exceptional performance whilst keeping running costs to a minimum.
The SL180 minor surgical light features a strong beam of light that has an even intensity across the viewing area.
Utilising LED technology the SL180 has around 50,000 hours from the LED light engine – that’s over 25 years of clinical use*.
The SL180 has various mounting options to suit your procedure room and is ideal for day surgery, gynaecology, A&E departments, GP treatment rooms, podiatry, dermatology and many more.
With variable intensity, easy to use controls and BioProtect® anti-microbial solution on all painted finishes, the SL180 LED minor surgical light will complement your treatment room perfectly.*based on 5.5 hours of use per day
BioProtect
BioProtect is an antimicrobial solution coating applied to DARAY’s products for infection control. Our core products are medical, dental and veterinary lighting used by specialist staff treating patients.
Infection is the highest risk in patient environments. BioProtect provides excellent protection against illness-causing bacteria such as MRSA, Salmonella, E. coli, Campylobacter and many other bacteria and fungal growths.
The SL180LED minor surgical light has been designed to provide exceptional performance whilst keeping running costs to a minimum.
| Light | Light Source | LED |
| Light Intensity (Lux) @ 0.5m | 87,000 ±5% | |
| Light Intensity (Lux) @ 0.75m | 50,000 ±5% | |
| Light Intensity (Lux) @ 1.0m | 30,000 ±5% | |
| Light Intensity Adjustment Range | 10 – 100% | |
| Colour Temperature (Kelvin) | 4,300K ±500 | |
| Colour Rendering Index (CRI) | 95 | |
| Colour Rendering (R9) | 88 | |
| Light Field Diameter (D50) | @0.5m:100mm | |
| @0.75m:135mm | ||
| @1m:150mm | ||
| Light Field Diameter (D10) | @0.5m:190mm | |
| @0.75m:275mm | ||
| @1m:340mm | ||
| Number of LED’s | 12 | |
| Power Consumption | Average Working Life | > 50,000 Hours |
| Input Voltage | 100-240V AC 50/60 Hz | |
| Output Voltage | 30V DC 1 A | |
| Temperature Rise on Patient /User | ≤2°C | |
| Other | Warranty Period | 5 Years |
| NHS E-Class Code | FBU,FKR,IBB | |
| Commodity Code | 9018 908400 | |
| GMDN Code | 12276 |
SL180 Notes
The SL180 LED Minor Surgical light features a strong beam of light that has an even intensity across the viewing area. Utilising LED technology the SL180 has around 50,000 hours from the LED light engine – that’s over 25 years of clinical use (based on 5.5 hours use per day).

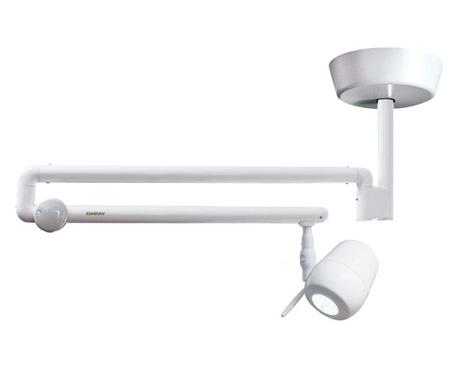

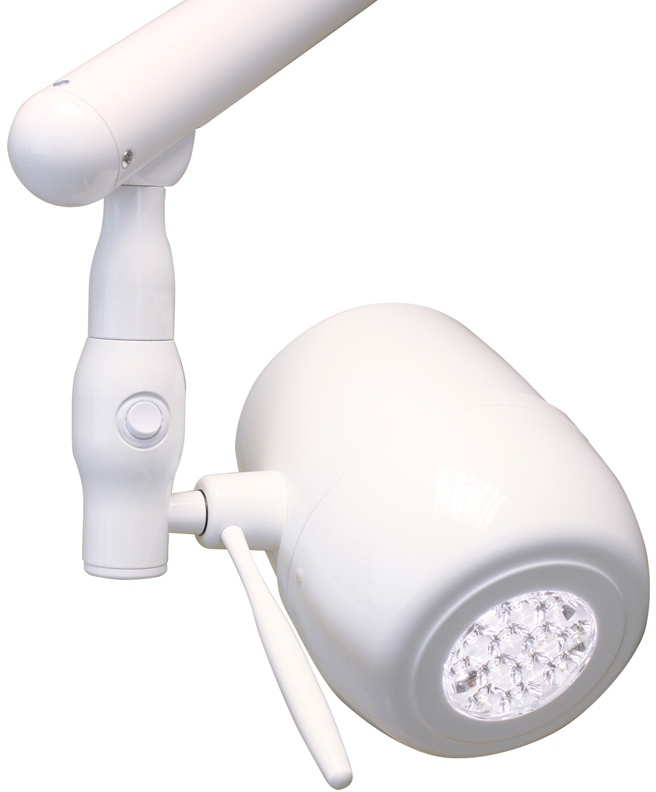

The wall and ceiling editions of this light come on spring balanced arms with a large range of movement as standard. Combined with great shadow reduction technology, the SL180 will keep you focused on your patients not your equipment. With a smooth, fully enclosed head, and our BioProtect © antimicrobial coating, this model is designed to assist you with infection control .
SL180 Medical Approvals/Certificates
| The product(s) on this datasheet adhere to the following standards in line with the 93/42/EC Medical Devices Directive – Classification: Class 1, Rule 1. |
| EN ISO 13485:2006 |
| EN ISO 14971:2007 |
| EN ISO 9001:2008 |
| EN 60598-2-25 |
| 2006/95/EC Low Voltage Directive |
| EN60601-2-41:2009 |
| EN 1041:2008 |
| EN 598-2-25 |
